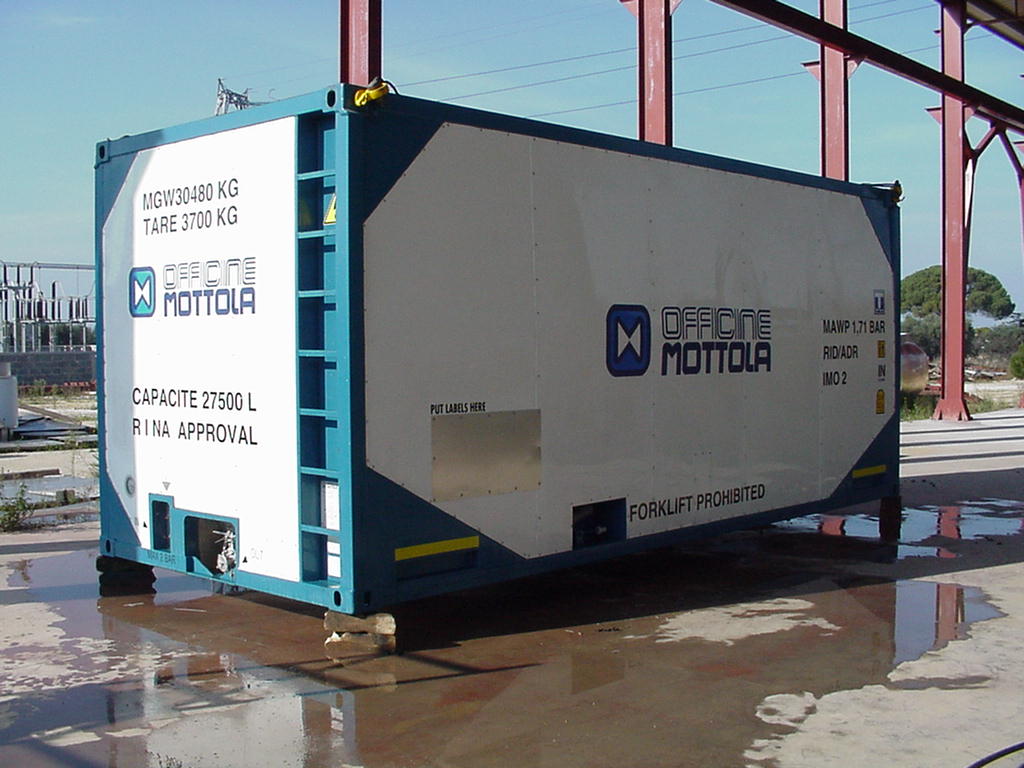

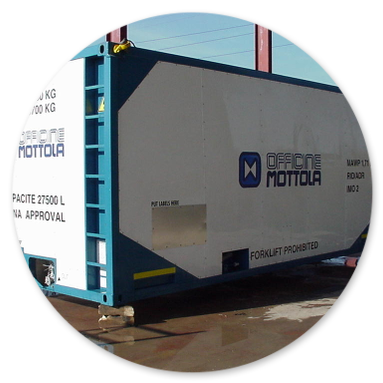

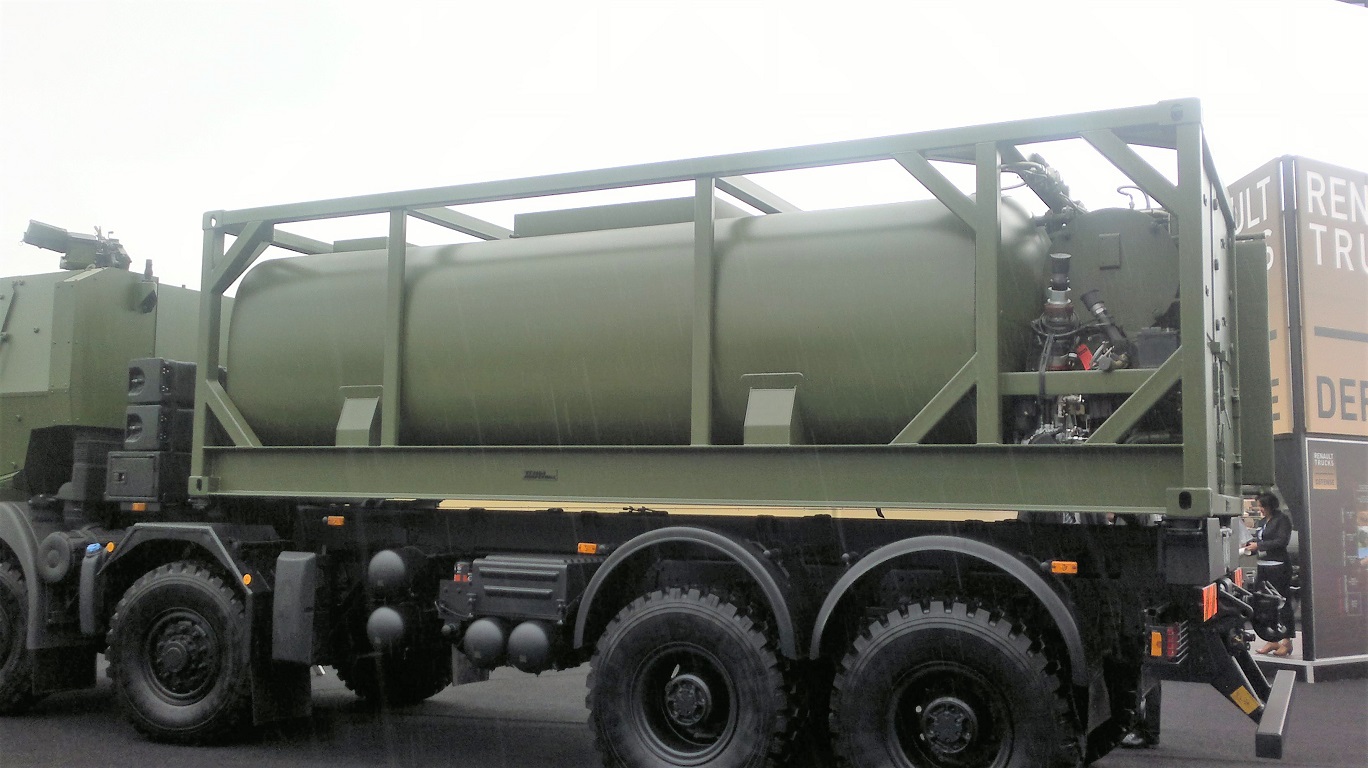

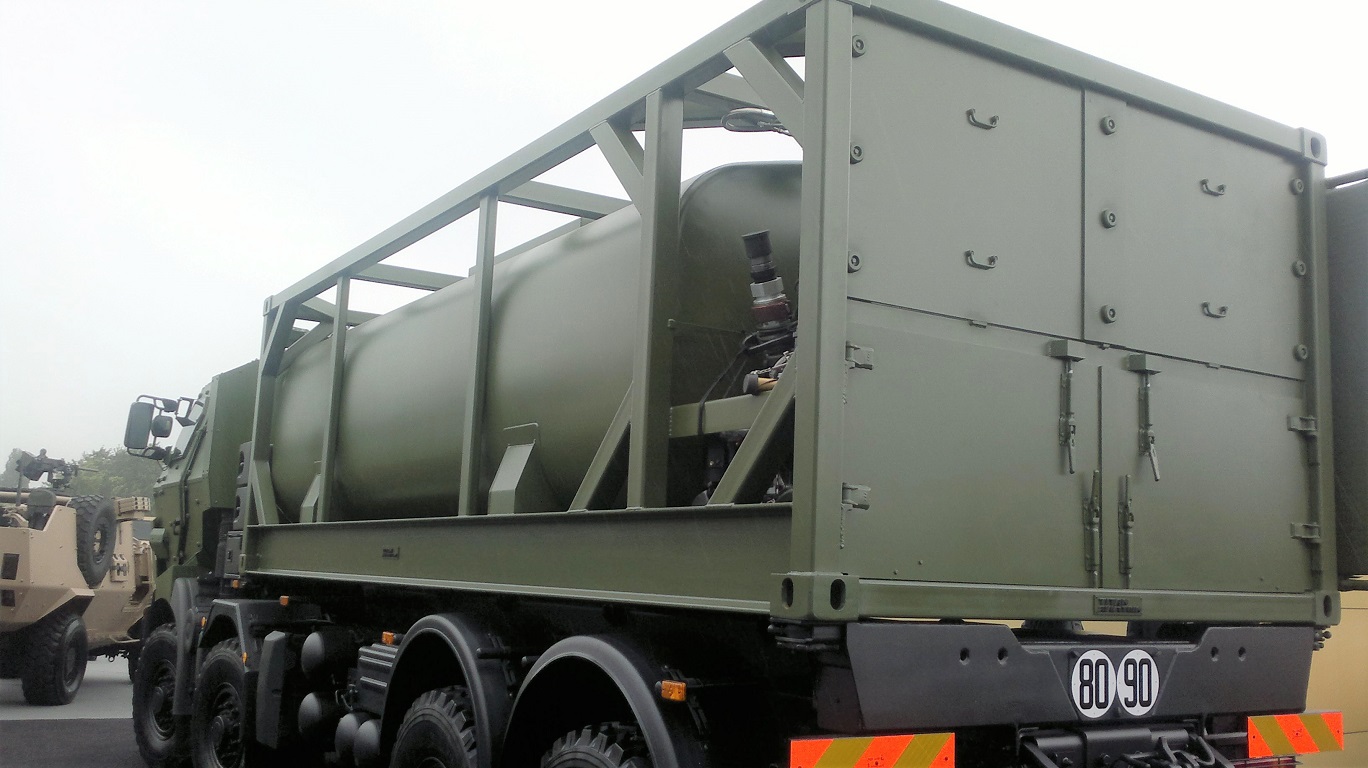

TANK CONTAINER

General Specifications

Dimensions
  • Length  6,058
  • Width   2,500
  • Height  2,600
Tare (Kg)
  • 3,800    Tare
Capacity (liters)
  • 27,500
Shell Material
  • Stainless steel, SA 240 316*1.4401 DIN 17441-- AISI 316 L -- finit. 2b
Frame Material
  • Structural steel to  BS 4360 tipo  Fe 430 or best
Shell Thickness
  • Shell and ends 3.2 mm 4.0 mm respectivly
Working Pressure
  • 1.71 bar
Test Pressure
  • 2.6 bar
External Vacuum Pressure
  • 0.40 bar
Design Temperature
  • 50° C
Design Code
  • ASME VIII Division 1
External  Finish
  • Framework shot blasted to SA 2.5, and painted using a water based primer and  chlorinated rubber paint
Internal Finish
  • Certified for the transport of foodstuff
Frame  Design
  • Top and bottom lift frame with corner castings to ISO 1161 at the top and overland castings in the base. Can be straddle lifted per UIC 592
Manlid
  • 500 mm, fully hinged with 6-point fixing positioned on the longitudinal center line
Bottom Outlet
  • 3"  stainless steel foot valve with remote closure, 3" PTFE sealed  butterfly valve terminating in 3" Table 'D' blank flange or a 3" BSP male outlet contained within a stainless steel compartment.
Safety Relief Valve
  • One  2 1/2" high flow pressure relif valve set at 2.19 bar. Facility exists for fitting bursting discs and pressure gauges.
  • Handrail
  • Provision for collapsible type which meets railway regulations
Insulation
  • Polyurethane
  • Steam Heating System
  • Stainless steel ducts giving an aeffective heating area of 4.4 sq. meters 2 bar working pressure with 1" inlet/outlet connections
Thermometer
  • Surface sensing type with a 0-200 °C scale
Approvals
  • ADR / RID, IMO Type 2, UIC, TIR, CSC
Ispection
  • RINA
